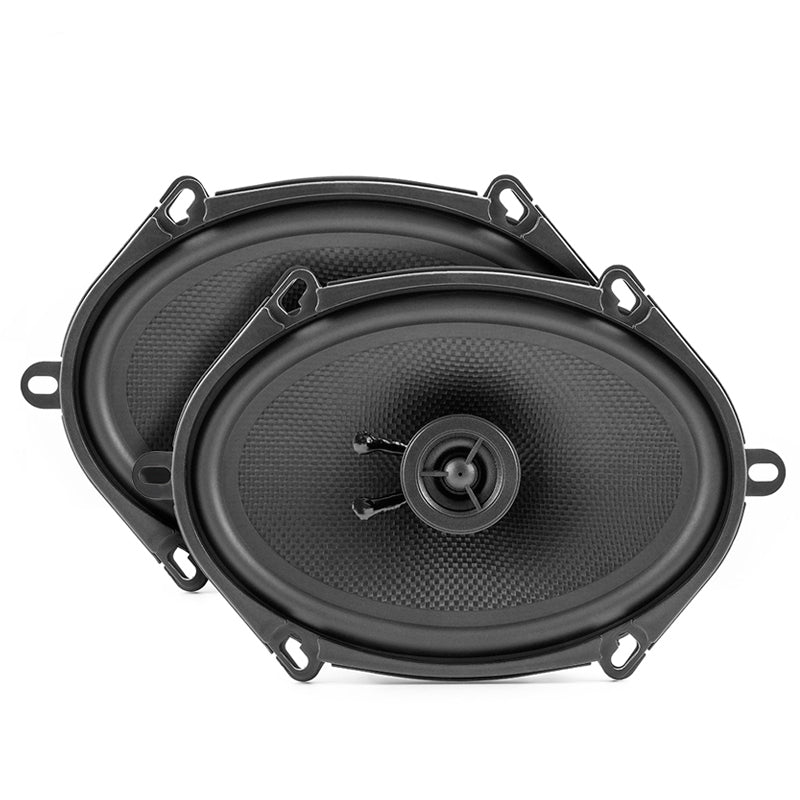

Ampire CE570
With this new AMPIRE 5''x 7'' coaxial loudspeaker, sound-degrading partial vibrations can be virtually eliminated thanks to its patented CIPP cone membrane. In addition, audibly deeper bass reproduction has been achieved through the use of ISD technology.
SCOPE OF DELIVERY
2 speakers
TECHNICAL DATA
- Nominal diameter 12.7cm x 17.8cm / 5" x 7"
- Fs 59.7Hz
- VAS 19.8 liters
- Qts 0.91
- Qes 1.33
- Qms 2.85
- Re 3.6 Ohm
- Z 4 Ohm
- Le 0.72mH
- SPL 90dB
- Mms 13.4g
- Xmax 3mm
- Sd 162.9cm²
- Vd 48.9cm³
- D 144mm
- Pe 70/140 Watt RMS
- Installation depth 58mm
- magnet diameter 80mm
